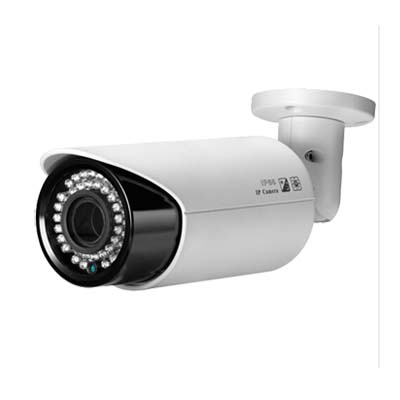

HDCVI 2.0MP camera (BS-CVI16A) ѯ
 Detail
Overview
• 1/3" 1.3Megapixel CMOS
• 25/30/50/60fps@720P
• High speed, long distance real-time transmission
• HD and standard definition switch
• Day/Night(ICR)
• 4mm fixed lens (4mm, 6mm, 8mm, 12mm optional)
• Max. IR LEDs length 30m, Smart IR
• IP66, DC12V
Mode:BS-CVI06A
Image Sensor:1/3" 1.3Megapixel CMOS
Effective Pixels:1280(H)960(V)
Electronic Shutter 4/25s~1/45,000s
Video Frame Rate:1280720@25 fps1280720@30 fps
1280720@50 fps1280720@60 fps
Synchronization:Internal
Min. Illumination:0.01Lux@F1.2(0Lux IR LED on)
Video Output:1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Max. IR LEDs Length:50m, Smart IR
Day/Night:Auto(ICR) / Color / B/W
Focal length:8mm fixed lens (3.6mm, 6mm,12mm,16mm optional)
Power Supply:DC12V10%
Power Consumption:Max 7.7W
Working Environment:-30C~+60C/ Less than 95%RH (no condensation)
Transmission Distance:Over 500m via 75-3 coaxial cable
Ingress Protection:IP66
